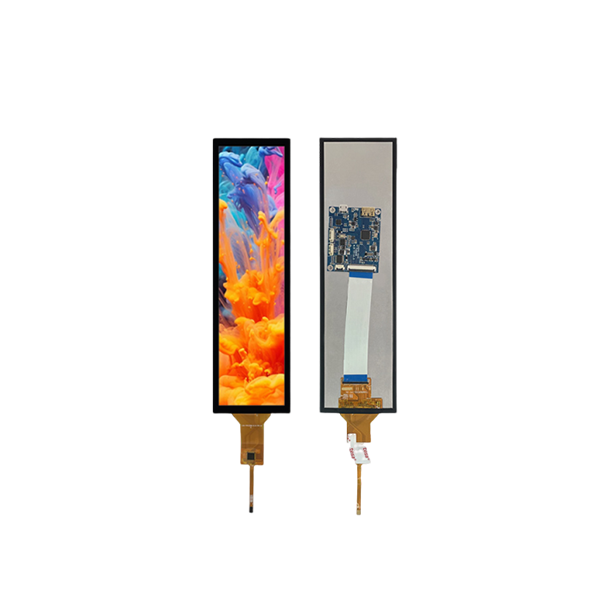

8.8 Inch HDMI Touch TFT LCD Display (480x1920)
- Manufacturer: SINDA
- Product Name: 8.8 Inch TFT LCD Module Display, 480x1920 Dots
- Display Format: 480x1920 Dots
- Interface: HDMI
Sinda Display 8.8-inch HDMI interface touch integrated display screen, with the characteristics of "no need to write software, simple development", brings users an efficient and convenient development experience. As the source factory, we rely on exquisite craftsmanship to create industrial-grade quality, guarantee stable delivery and professional after-sales, and provide customers with one-stop customized solutions. The product adopts normally black TFT active matrix technology, 480×3RGB (H)×1920 (V) high resolution with RGB strip pixel arrangement, combined with 0.114mm pixel pitch, presents delicate high-definition pictures; 550Nits brightness and full-view viewing design, no fear of complex ambient light. HDMI interface plug and play, G+G structure touch screen with OCA full lamination process, sensitive and accurate touch. In addition, the backlight brightness, backlight structure, FPC cable, resistive or capacitive touch screen, etc. can all be customized as needed. With a size of 64.1×231.2×6.85mm and 5V low-voltage drive, it can operate stably in a working environment of -20℃ to 70℃ and a storage environment of -30℃ to 80℃, meeting the needs of diverse industrial and commercial application scenarios.
ITEM | Sandard value | Unit |
size | 8.8 | Inch |
LCD Type | Normally black | -- |
Drive element | TFT active matrix | -- |
Number of pixels | 480*3RGB(H)X1920(V) | Dots |
Pixel arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.114(H) X 0.114(V) mm | mm |
Active area | 54.72(H) *218.88(V) | mm |
Mechanical OutlineSize(W*H*T) | 64.1*231.2*6.85 | mm |
Viewing direction | ALL O’CLOCK | - |
LCM interface | HDMI | - |
Cover material | Asahi Glass | |
Touch screen structure | G+G | |
Laminating process | OCA | |
voltage | 5 | V |
operating temperature | -20+70 | ℃ |
storage temperature | -30+80 | ℃ |
Lumens degrees | 550 | Nits |
Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
---|
