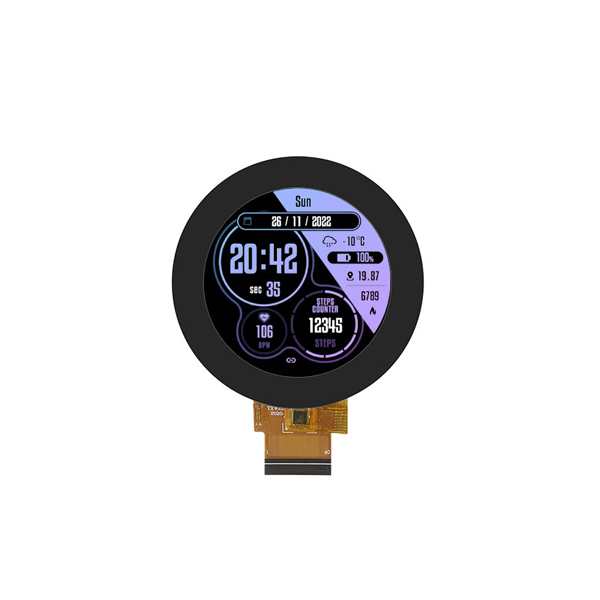

2.1 Inch Round TFT LCD Display (480x480)
- Manufacturer: SINDA
- Product Name: 2.1 inch TFT LCD Module Display, 480x480 Dots
- Display Format: 480x480 Dots
- Interface: IIC
2.1-inch round full-color TFT screen, 480*480 resolution, IPS full viewing angle, 400cd/m² brightness. -20 to 70℃ wide operating temperature, Asahi Glass tempered glass cover, G+F touch technology, OCA full lamination. Suitable for smart home appliances, medical equipment and other fields, providing professional technical support and after-sales, reliable quality.
ITEM | Sandard value | Unit |
size | 2.1 | Inch |
LCD Type | Normally black | -- |
Drive element | TFT active matrix | -- |
Number of pixels | 480*3RGB(H)X480(V) | Dots |
Pixel arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.111*0.111 | mm |
Active area | Φ53.28 | mm |
Mechanical OutlineSize(W*H*T) | 71.8*71.8*3.58 | |
Viewing direction | ALL O’CLOCK | - |
LCM Driver IC | ST7701S | - |
LCM interface | RGB 18 BIT Interface | - |
Cover material | Asahi Glass Tempered Glass | |
Touch screen structure | G+F | |
Touch Driver IC | CST830 | - |
Touch Interface | IIC | |
Laminating process | OCA full fit | |
Lcm pin n count | 40 | |
Backlight leds | 4 | pcs |
Backlight current | 80 | mA |
Backligh voltage | 2.8-3.3 | V |
operating temperature | -20+70 | ℃ |
storage temperature | -30+80 | ℃ |
Lumens degrees | 400 | cd/㎡ |
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
|---|
