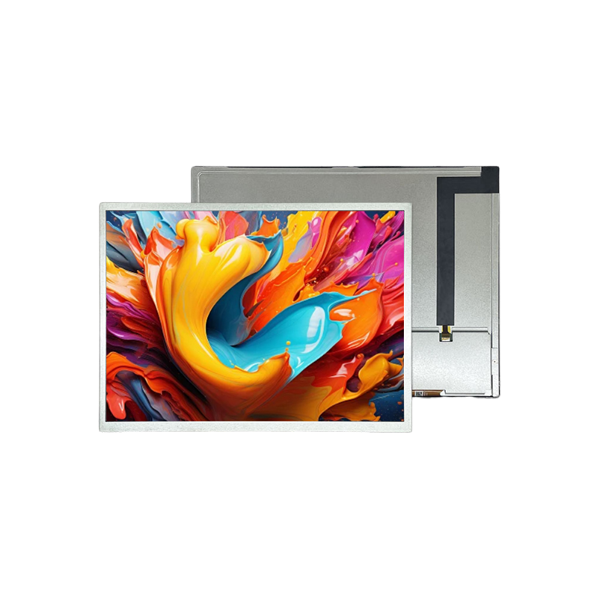

12.1 Inch 20pin LVDS TFT Display (1024x768)
- Manufacturer: SINDA
- Product Name: 12.1 Inch TFT LCD Module Display, 1024x768 Dots
- Display Format: 1024x768 Dots
- Interface: LVDS
Sinda Display's independently developed 12.1-inch 4:3 full-color TFT LCD display has become the best display in multiple fields with its excellent performance and professional services. 1024*768 resolution and IPS full-view technology combined with 1000cd/m² high brightness, whether it is a vehicle-based environment with direct light or a medical device that requires strict display accuracy, it can present a clear and delicate picture with accurate colors. The products are widely used in vehicle display, industrial security, medical equipment, military equipment, outdoor highlighting scenes and ship navigation fields, and meet the diverse and professional display needs with stable and reliable performance.
ITEM | Sandard value | Unit |
size | 12.1 | Inch |
LCD Type | Normally black | -- |
Drive element | TFT active matrix | -- |
Number of pixels | 1024*3RGB(H)X768(V) | Dots |
Pixel arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.24 | mm |
Active area | 245.76(H) * 18.32(V) | mm |
Mechanical OutlineSize(W*H*T) | 259.5*203*6.7 | mm |
Viewing direction | ALL O’CLOCK | - |
LCM interface | LVDS Interface | - |
Lcm pin n count | 20 | |
Backlight leds | 44 | pcs |
Backlight current | 160 | mA |
Backligh voltage | 33 | V |
operating temperature | -30+80 | ℃ |
storage temperature | -30+80 | ℃ |
Lumens degrees | 1000 | cd/㎡ |
