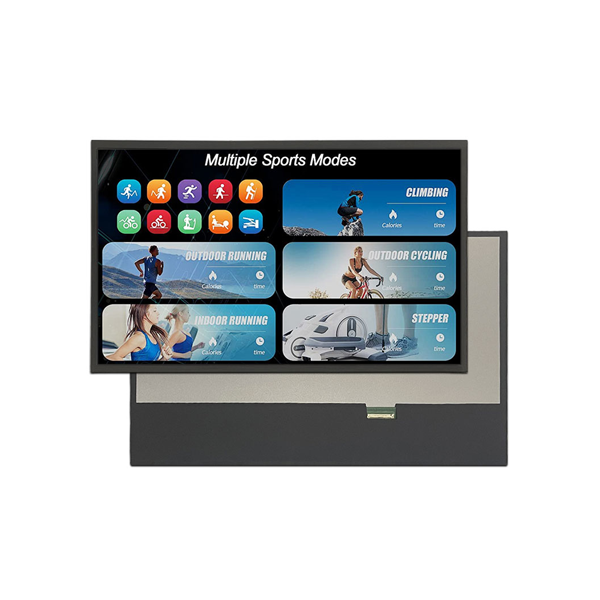

15.6 Inch LVDS Interface TFT LCD Display (1920x1080)
- Manufacturer: SINDA
- Product Name: 15.6 Inch TFT LCD Module Display, 1920x1080 Dots
- Display Format: 1920x1080 Dots
- Interface: LVDS
The 15.6-inch 16:9 full-color TFT LCD display independently developed by Sinda Display has become the preferred display in multiple fields with its excellent performance and perfect service. 1920*1080 Full HD resolution and IPS full-view angle technology, combined with 1000cd/m² high brightness, can always present a clear and delicate picture with accurate colors even in a wide temperature environment of -20℃ to 70℃. The LVDS interface is adopted to ensure stable and efficient signal transmission. The products are widely used in charging piles, refueling machines, agricultural machinery and equipment, industrial computers, mobile payments, industrial security, instruments, medical equipment, smart homes, Internet of Things, household appliances, sports equipment display and other scenarios, and meet diverse and professional display needs with reliable quality and excellent performance.
ITEM | Sandard value | Unit |
size | 15.6 | Inch |
LCD Type | Normally Black | -- |
Drive element | TFT active matrix | -- |
Number of pixels | 1920*3RGB(H)X1080(V) | Dots |
Pixel arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.17925*0.17925 | mm |
Active area | 344.16(H) *193.59(V) | mm |
Mechanical OutlineSize(W*H*T) | 360.00x212.30x5.50 | mm |
Viewing direction | ALL O’CLOCK | - |
LCM interface | LVDS Interface | - |
Backlight current | 480 | mA |
Backligh voltage | 29.7-37.4 | V |
operating temperature | -20+70 | ℃ |
storage temperature | -30+80 | ℃ |
Lumens degrees | 1000 | cd/㎡ |
Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
---|
