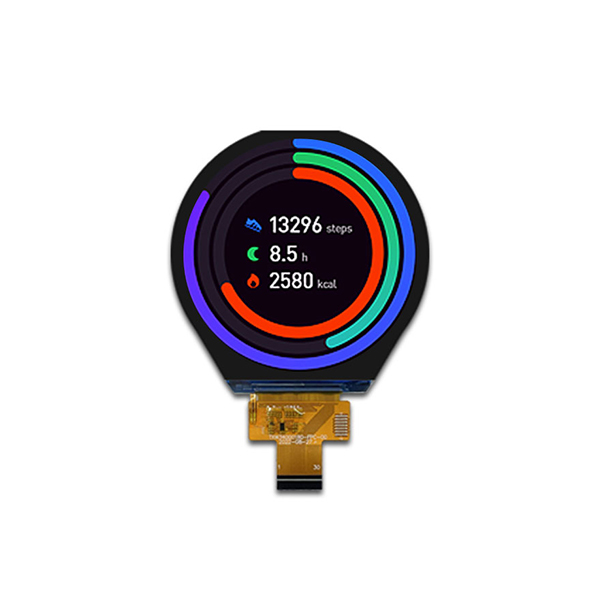

3.4 Inch Round TFT LCD Display (800x800)
- Manufacturer: SINDA
- Product Name: 3.4 inch TFT LCD Module Display, 800x800 Dots
- Display Format: 800x800 Dots
- Interface: MIPI
3.4-inch round full-color TFT screen, 800*800 high resolution, IPS full viewing angle, 500cd/m² brightness. -30 to 80℃ wide operating temperature, supports customization of brightness, FPC, etc., adapts to MIPI/LVDS interface, and can be equipped with capacitive touch full lamination. It is suitable for smart appliances, medical instruments and other fields, providing professional technical support and after-sales guarantee, and reliable quality.
ITEM | Sandard value | Unit |
size | 3.4 | Inch |
LCD Type | Normally black | -- |
Drive element | TFT active matrix | -- |
Number of pixels | 800*3RGB(H)X800(V) | Dots |
Pixel arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.1095 | mm |
Active area | Φ87.6 | mm |
Mechanical OutlineSize(W*H*T) | 94.9*96.95*2.26 | mm |
Viewing direction | ALL O’CLOCK | - |
LCM Driver IC | JD9365DA | - |
LCM interface | MIPI Interface | - |
Lcm pin n count | 40 | |
Backlight leds | 8 | pcs |
Backlight current | 40 | mA |
Backligh voltage | 22-26.4 | V |
operating temperature | -30+80 | ℃ |
storage temperature | -30+80 | ℃ |
Lumens degrees | 500 | cd/㎡ |
