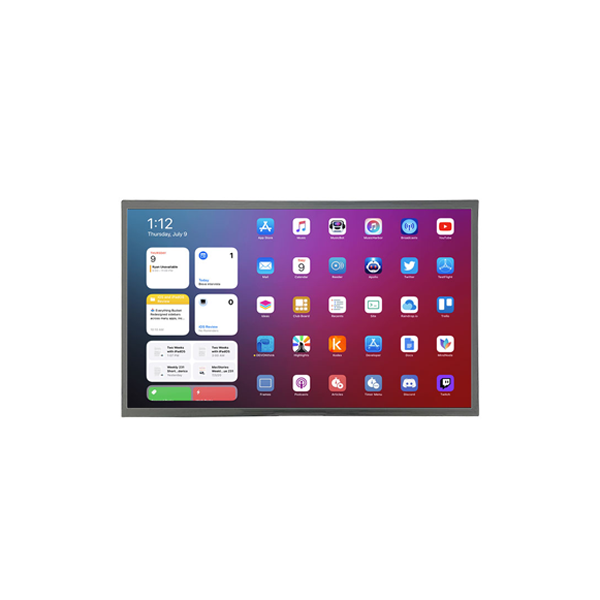

13.3 Inch EDP TFT LCD Display (1920x1080)
- Manufacturer: SINDA
- Product Name: 13.3 Inch TFT LCD Module Display, 1920×1080 Dots
- Display Format: 1920×1080 Dots
- Interface: EDP
Sinda Display launches a 13.3-inch 16:9 full-color TFT LCD display, leading the new display experience with cutting-edge technology and ingenious quality. 1920*1080 Full HD resolution and IPS full-view technology combined with 800cd/m² high brightness, whether it is complex light in the industrial environment or high-frequency use scenarios of mobile payment, it can present a clear and sharp and full color picture. Adopt the EDP interface to ensure efficient and stable signal transmission. It is widely used in industrial computers, mobile payments, industrial security, instruments, medical equipment, smart homes, Internet of Things and household appliances, and provides ideal display solutions for all industries with excellent performance and reliable quality.
ITEM | Sandard value | Unit |
size | 13.3 | Inch |
LCD Type | Normally Black | -- |
Drive element | TFT active matrix | -- |
Number of pixels | 1920*3RGB(H)X1080(V) | Dots |
Pixel arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.153*0.153 | mm |
Active area | 293.76(H) *165.24(V) | mm |
Mechanical OutlineSize(W*H*T) | 307.6*183.05*5.5 | mm |
Viewing direction | ALL O’CLOCK | - |
LCM interface | EDP Interface | - |
Backlight leds | 54 | pcs |
Backlight current | 360 | mA |
Backlight voltage | 27 | V |
operating temperature | -20+70 | ℃ |
storage temperature | -30+80 | ℃ |
Lumens degrees | 800 | cd/㎡ |
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
|---|
