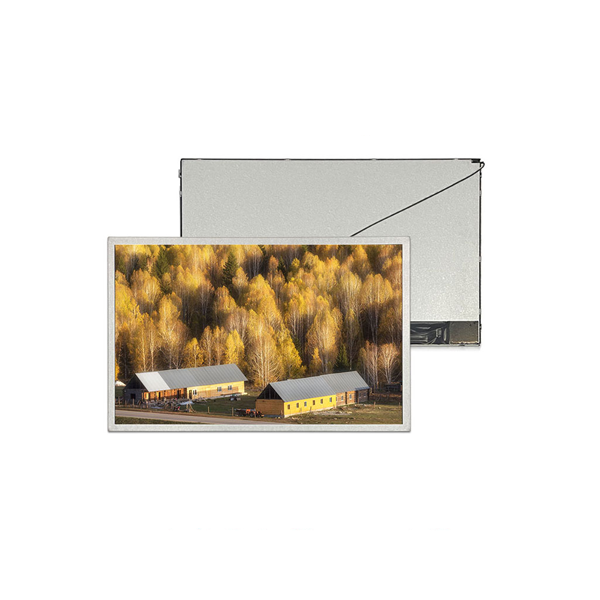

12.1 Inch LVDS TFT LCD Display (1200x800)

12.1 Inch LVDS TFT LCD Display (1200x800)

  • Manufacturer: SINDA
  • Product Name: 12.1 Inch TFT LCD Module Display, 1200×800 Dots
  • Display Format: 1200×800 Dots
  • Interface: LVDS

Sinda Display 12.1-inch 16:9 full-color TFT LCD screen stands out with its excellent performance and perfect service. 1200*800 high-definition resolution with IPS full-viewing angle technology, supplemented by 1000cd/m² high-brightness display, whether it is the strong direct light of the car driving scene or the complex environment of industrial security, the picture is always clear and delicate, and the color is accurate. Relying on independent research and development and production capabilities, it provides one-stop customization services such as cable, cover, TP, PCBA, touch screen, etc. to meet diverse needs. The product is widely adapted to the fields of vehicle-mounted, industrial security, medical equipment, military equipment, outdoor high brightness, etc., and is an ideal display solution that takes into account both performance and reliability.

Inquire now back

ITEM

Sandard value

Unit

size

12.1

Inch

LCD Type

Normally black

--

Drive element

TFT active matrix

--

Number of pixels

1280*3RGB(H)X800(V)

Dots

Pixel arrangement

RGB stripe

--

Pixel Pitch (W*H)

0.068(H) *0.204(V)

mm

Active area

261.12(H) * 163.2(V)

mm

Mechanical OutlineSize(W*H*T)

277.7*180.6*8.7

mm

Viewing direction

ALL O’CLOCK

-

LCM interface

LVDS  Interface

-

Lcm pin n count

30


Backlight leds

54

pcs

Backlight current

240

mA

Backligh voltage

24

V

operating temperature

-20+70

storage temperature

-30+80

Lumens degrees

600

cd/㎡
