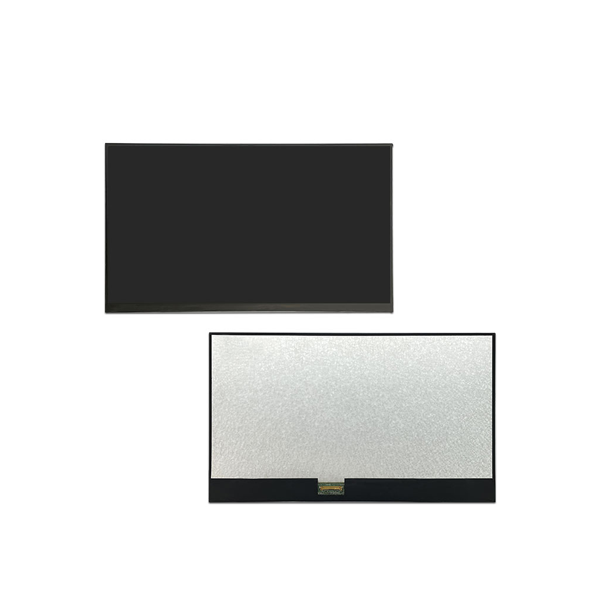

11.6 Inch LVDS TFT LCD Display (1920x1080)

11.6 Inch LVDS TFT LCD Display (1920x1080)

  • Manufacturer: SINDA
  • Product Name: 11.6 Inch TFT LCD Module Display, 1920×1080 Dots
  • Display Format: 1920x1080 dots
  • Interface: LVDS

Sinda Display's independently developed 11.6-inch 16:9 full-color TFT LCD screen meets the needs of multiple scenarios with excellent performance. 1920*1080 full HD resolution with IPS full-viewing angle technology, combined with 400cd/m² high brightness, presents clear, brilliant, and color-accurate visual images; -20℃ to 70℃ wide temperature working environment ensures stable operation of the product under complex conditions. From design and development to production and manufacturing, Sinda Display escorts the entire process with professional technology, strictly controls production quality, and provides thoughtful after-sales guarantee. With its excellent performance, the product is widely used in industrial computers, mobile payments, industrial security, instrumentation, medical equipment, smart homes, the Internet of Things, household appliances and other fields. It is a trustworthy high-performance display solution.

Inquire now back

ITEM

Sandard value

Unit

size

11.6

Inch

LCD Type

Normally Black

--

Drive element

TFT active matrix

--

Number of pixels

1920*3RGB(H)X1080(V)

Dots

Pixel arrangement

RGB stripe

--

Pixel Pitch (W*H)

0.1335*0.11135

mm

Active area

256.32(H) *144.18(V)

mm

Mechanical OutlineSize(W*H*T)

281.02*1173.08*4.75

mm

Mechanical OutlineSize(W*H*T)

263.6*157.42*3.1

mm

Viewing direction

ALL O’CLOCK

-

Lcm pin n count

30


Backlight leds

54

pcs

Backlight current

120

mA

Backligh voltage

27

V

operating temperature

-20+70

storage temperature

-30+80

Lumens degrees

400

cd/㎡
