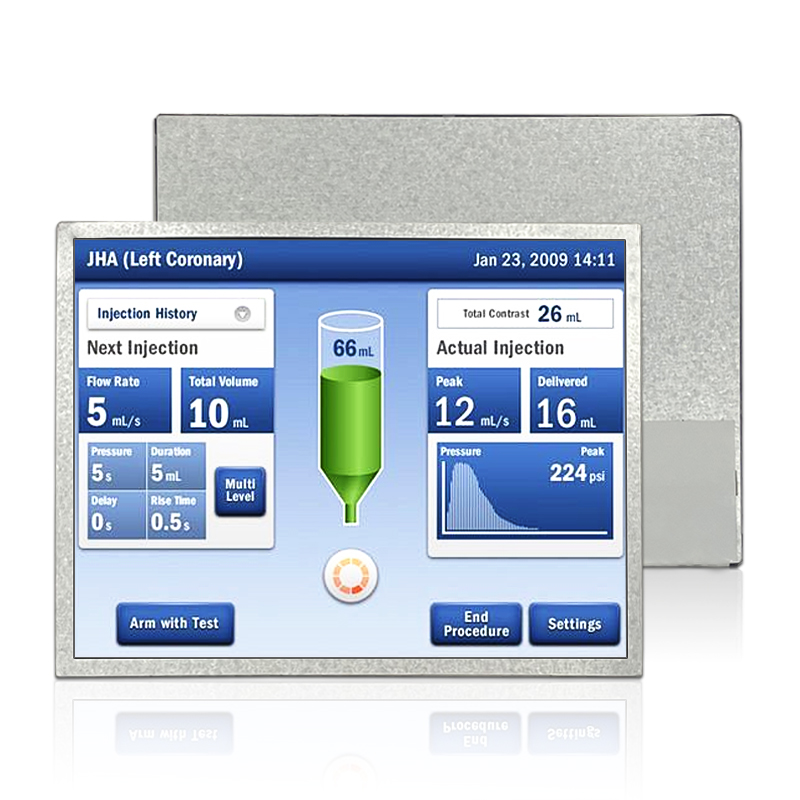

10.4 Inch LVDS TFT LCD Display (1024x768)

10.4 Inch LVDS TFT LCD Display (1024x768)

  • Manufacturer: SINDA
  • Product Name: 10.4 Inch TFT LCD Module Display, 1024x768 Dots
  • Display Format: 1024x768 Dots
  • Interface: LVDS

Sinda Display launches a 10.4-inch LCD display to reshape the visual experience with excellent performance. 1024×RGB×768 physical resolution with 166PPI pixel density, after professional color calibration, the picture is delicate and realistic, and the color is accurately restored. 500nits high-brightness display combined with IPS technology is still clearly visible under strong outdoor light; 60% NTSC color gamut and 4:3 classic ratio make the color level rich and full. The product adopts 30PIN/LVDS interface to ensure stable signal transmission, and can be well adapted in the fields of vehicle display, industrial security, medical equipment, military equipment, outdoor advertising and ship display. With the characteristics of outdoor high-definition and high brightness and sufficient spot supply, it provides efficient and reliable display solutions for users in various industries.

Inquire now back

Size:10.4 inch

Number of pixels:1024*768

Viewing direction:IPS

Interface:LVDS 30 PIN

Brightness:500nits

Active area:210.432*157.824(mm)

Outline Size:228.4*174.5*5.9(mm)

Operating temperature:-20+70°

storage temperature:-30+80°

Application area :Vehicle display, industrial security, medical equipment, military equipment, outdoor display, ship display, etc.



Display Format Model No. Outline Dimension Viewing Area Active Area IC Interface Datasheet Download
