PRODUCT

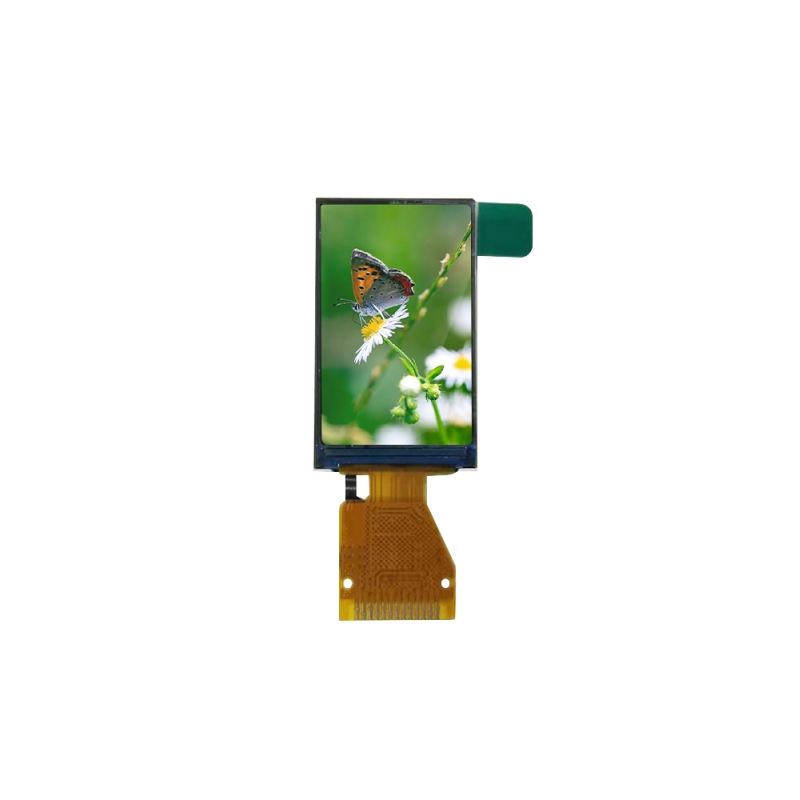

1.14 Inch TFT
- Manufacturer: SINDA
- Product Name: 1.14inch TFT LCD Module Display, 135 x 240 dots, SPI
- Display Format: 135x240 dots
SINDA is an lcd screen manufacturer, providing a full range of 1.14 inch to 10.1 inch small and medium size standard quasi TFT LCD modules, TFT screen modules, TFT display modules, display industry, industrial LCD screen, visually outstanding TFT LCD display in sunlight screen, industrial custom TFT screen, TFT full temperature LCD screen, industrial TFT LCD screen, industrial touch screen. TFT LCD modules are ideal for industrial control equipment, medical devices, POS systems, consumer electronics, communication equipment, and office supplies.and more. For any other custom requests, feel free to contact us.
ATTRIBUTES
Manufacturer | SINDA |
Part Number | SDT01101N-A13 |
Display Format | 135x240 dots |
Diagonal Size | 1.14” |
Interface | SPI |
IC or Equivalent | ST7789V |
Connection | FPC |
Outline Dimension | 17.60(W)x31.00(H)x1.60(T)mm |
Visual Area | 15.86x25.91mm |
Active Area | 14.86x24.91mm |
Contrast Ratio(Typ) | 300:1 |
Brightness(Typ) | 180cd/m2 |
IC Package | COG |
Display Type | TFT |
Viewing Direction | ALL |
Power Supply(Typ) | 3.0V |
Operating Temperature | -20℃~70℃ |
Storage Temperature | -30℃~80℃ |
