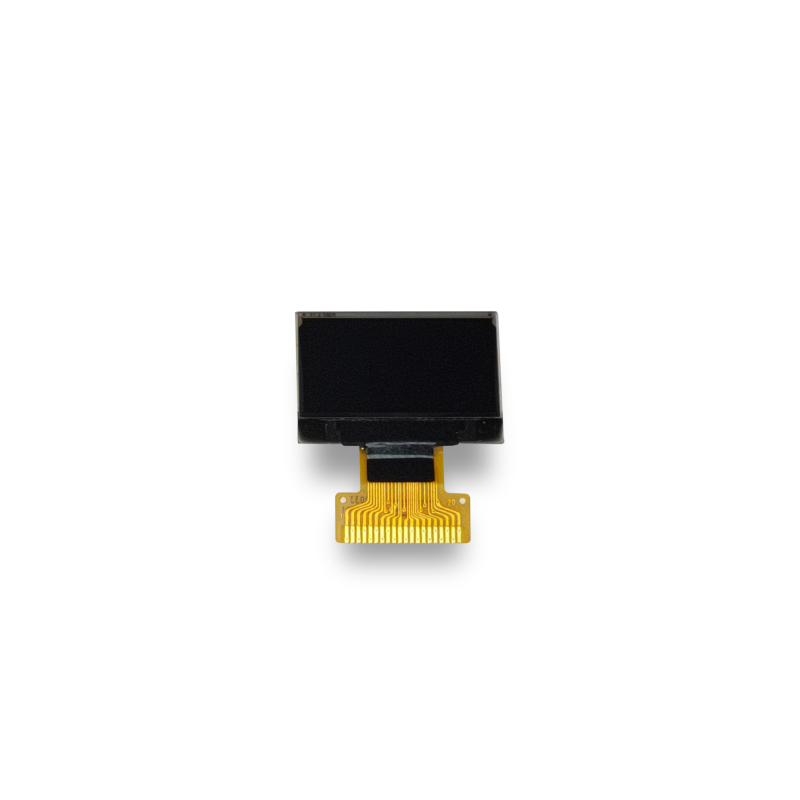

0.95" OLED Display

0.95" OLED Display

  • Manufacturer: SINDA
  • Product Name: 0.95 inch OLED Display Panel 96x64 SSD1331Z Parallel &SPI Interface

OLED Display 0.95" module is an OLED 96x64dot matrix display module with Parallel &SPI Interface. Comparing to LCD, OLED screens are more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim thin outline, wide viewing angle, wide temperature range, and low power consumption. Sinda Display is professional manufacturer of Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Pump controller etc. For any other custom requests, feel free to contact us.

Inquire now back

ATTRIBUTES


Manufacturer

SINDA

Part Number

SDO9664-02

Display Format

96x64 dots

Diagonal Size

0.95”

Interface

Parallel &SPI

IC or Equivalent

SSD1331Z

Connection

FPC

Outline Dimension

25.70(W)x22.20(H)x1.30(T)mm

Visual Area

22.14x15.42mm

Active Area

20.14x13.42mm

Dot (Pixel) Size

0.19x0.19mm

Dot (Pixel) Pitch

0.21x0.21mm

IC Package

COG

Display Type

RGB OLED

Viewing Direction

ALL

Power Supply(Typ)

3.0V

Operating Temperature

-40℃~80℃

Storage Temperature

-45℃~85℃


Display Format Model No. Outline Dimension Viewing Area Active Area IC Interface Datasheet Download
96x64 dots SDO9664-02 25.70(W)x22.20(H)x1.30(T)mm 22.14x15.42mm 20.14x13.42mm SSD1331Z Parallel &SPI
96x64 dots SDO9664-03 25.30(W)x22.50(H)x1.40(T)mm 22.14x15.42mm 20.14x13.42mm SSD1305 Parallel &SPI
