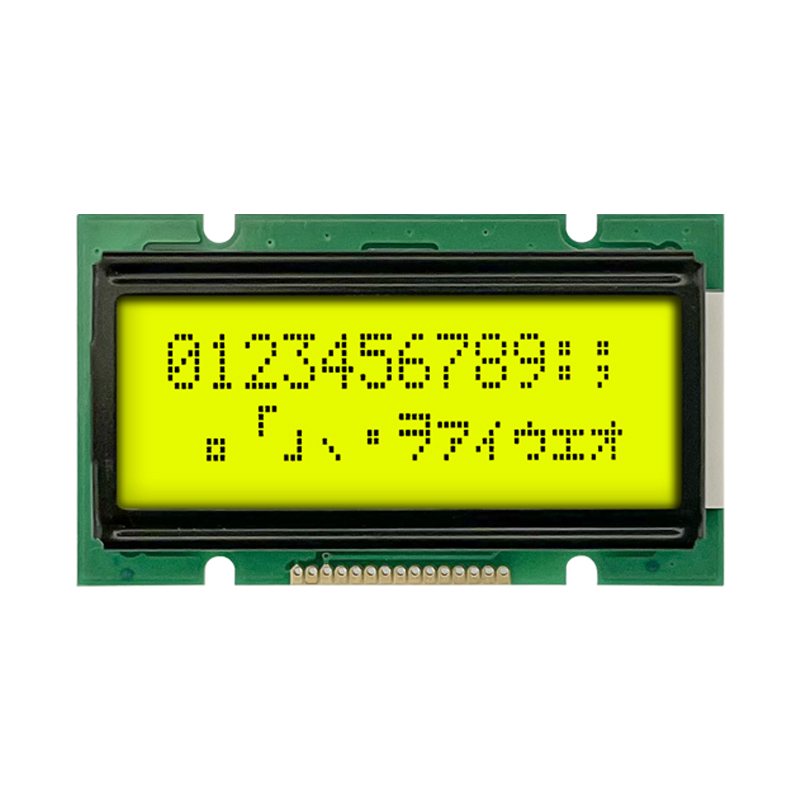

Character 12x2 LCD Module
- Manufacturer: SINDA
- Product Name: 12x2 Character LCD Module Series | 12x2 Character Display
- Backlight White/Yellow-Green
This LCD display offers a wide operating temperature range from -20 to 70 degrees Celsius. The best view for this monitor is 6:00/12:00. The monitor operates on a 3.3V/5V supply voltage and is RoHS compliant. Sinda Display is professional manufacturer of Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Pump controller etc. For any other custom requests, feel free to contact us.
ATTRIBUTES
Manufacturer | SINDA |
Part Number | SDCB1202-01 |
Display Format | 12x2 Character |
Interface | 6800 8-bit Parallel , 8080 8-bit Parallel |
IC or Equivalent | ST7066U AIP31066 HD44780 |
Connection | Pin Header |
Outline Dimension | 55.70(W)x32.00(H)x9.10(T)mm |
Visual Area | 46.00x17.50mm |
Active Area | 37.85x11.70mm |
Dot (Pixel) Size | 2.65x5.50mm |
Dot (Pixel) Pitch | 0.45x0.60mm |
IC Package | 0.55x0.70mm |
Display Type | COB |
Viewing Direction | FSTN/STN Y-G/BLUE/GRAY |
Power Supply(Typ) | 6:00/12:00 |
Operating Temperature | 5V |
Storage Temperature | -20℃~70℃ |
