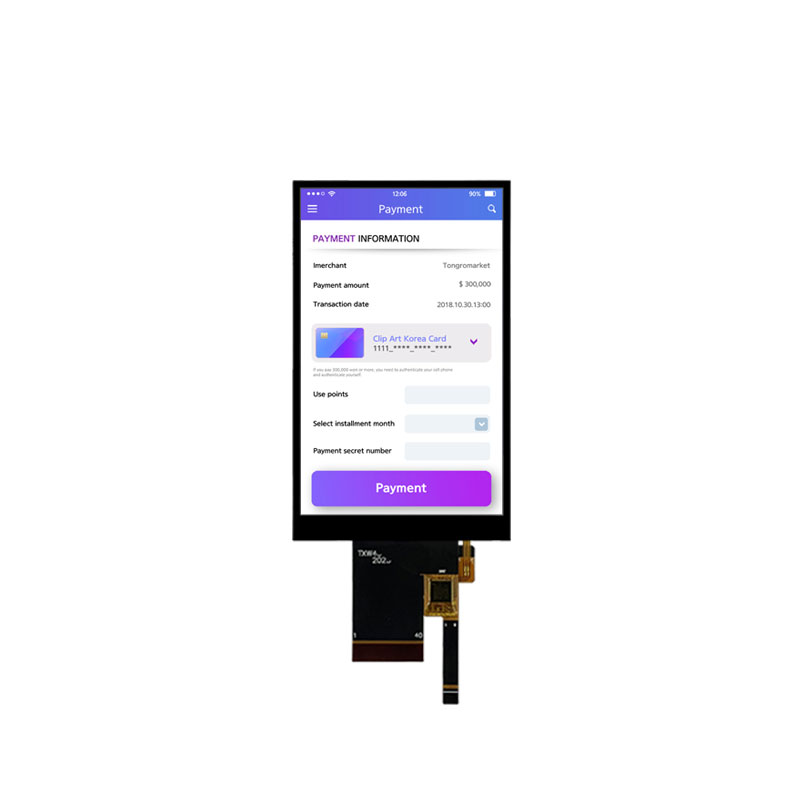

4.3 Inch TFT RGB LCD Display (480x800)
- Manufacturer: SINDA
- Product Name: 4.3 inch TFT LCD Module Display, 480x800 Dot, Serial RGB
- Display Format: 480x800 dots
- Interface: RGB
This 4.3-inch 16:9 full-color TFT screen has a resolution of 480*800, IPS full viewing angle, and 350cd/m² brightness. It operates in a wide temperature range of -20 to 70°C, has an Asahi glass tempered glass cover, and G+FF touch technology, making it suitable for medical, automotive and other fields. It has a 99.7% shipment yield rate and provides full technical support and after-sales guarantee.
ITEM | Sandard value | Unit |
size | 4.3 | Inch |
LCD Type | Normally black | -- |
Drive element | TFT active matrix | -- |
Number of pixels | 480*3RGB(H)X800(V) | Dots |
Pixel arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.039*0.117 | mm |
Active area | 56.16(H) * 93.6(V) | mm |
Mechanical OutlineSize(W*H*T) | 62*104.25*3.98/60*104.25*2.15 | mm |
Viewing direction | ALL O’CLOCK | - |
LCM Driver IC | ST7701S | - |
LCM interface | RGB BIT Interface | - |
Lcm pin n count | 40 | |
Cover material | Asahi Glass Tempered Glass | |
Touch screen structure | G+FF | |
Touch Driver IC | GT911 | - |
Touch Interface | IIC | |
Laminating process | OCA full fit | |
Backlight leds | 10 | pcs |
Backlight current | 40 | mA |
Backligh voltage | 14-16 | V |
operating temperature | -20+70 | ℃ |
storage temperature | -30+80 | ℃ |
Lumens degrees | 350 | cd/㎡ |
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
|---|
