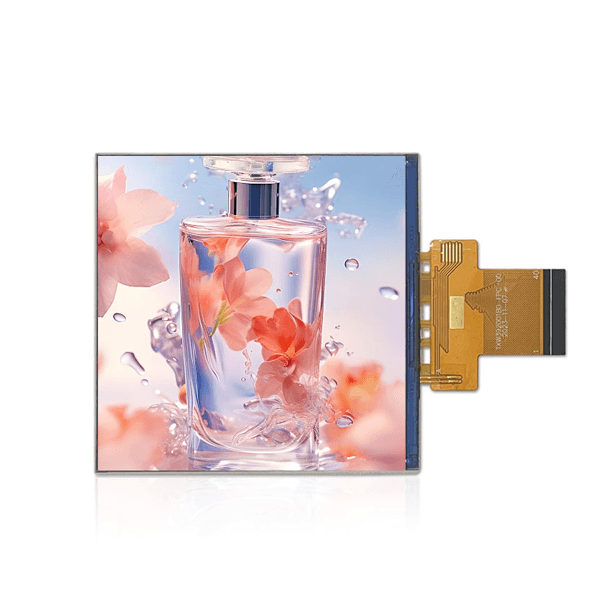

3.92 Inch Square TFT Display (480x480)
- Manufacturer: SINDA
- Product Name: 3.92 Inch TFT LCD Module Display, 480×480 Dots
- Display Format: 480×480 Dots
- Interface: SPI/MCU BIT Interface
Sinda Display 3.92 inch square full-color TFT touch LCD display, with 480*480 resolution, IPS full-viewing angle technology, and 500cd/m² high brightness display, presents a delicate and clear picture and precise touch experience. As a product designed, developed and produced independently, it is equipped with professional full-process technical support, first-class production quality control and perfect after-sales service, fully meeting the display needs of 86 smart switches, medical display panels, home appliances, industrial equipment, security equipment, instruments and meters, digital electronics and other fields. It is an optimal display solution with both performance and reliability.
ITEM | Sandard value | Unit |
size | 3.92 | Inch |
LCD Type | Normally Black | -- |
Drive element | TFT active matrix | -- |
Number of pixels | 480*3RGB(H)X480(V) | Dots |
Pixel arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.2223*0.2182 | mm |
Active area | 71.14(H) * 69.82(V) | mm |
Mechanical OutlineSize(W*H*T) | 74.86*76.73*2.13 | mm |
Viewing direction | ALL O’CLOCK | - |
IC/LCM Driver IC | ST7365P | - |
LCM interface | SPI/MCU BIT Interface | - |
Backlight leds | 10 | pcs |
Backlight current | 40 | mA |
Backligh voltage | 15 | V |
operating temperature | -20+70 | ℃ |
storage temperature | -30+80 | ℃ |
Lumens degrees | 500 | cd/㎡ |
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
|---|
