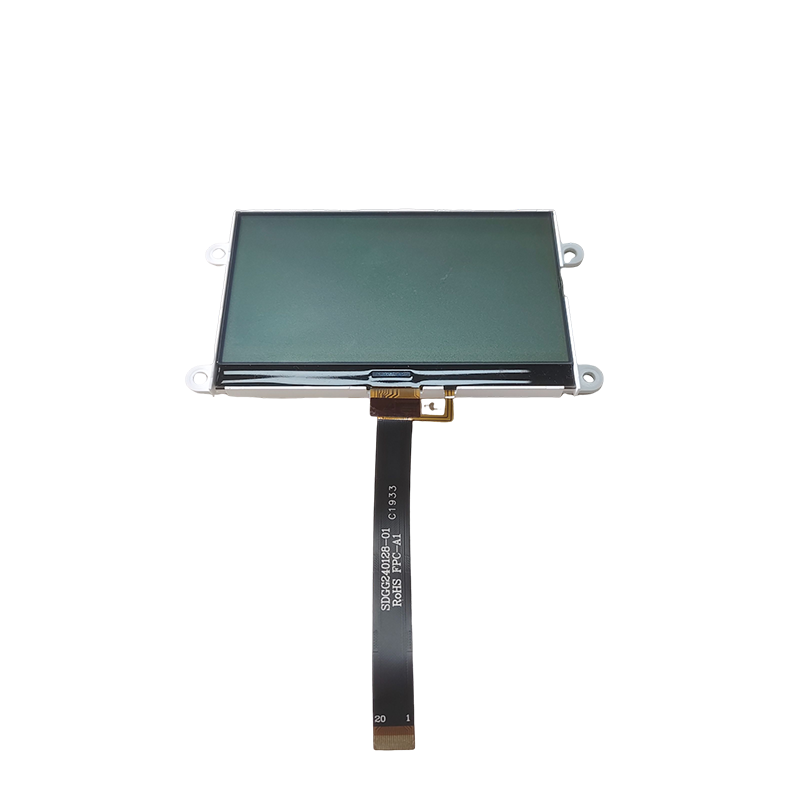

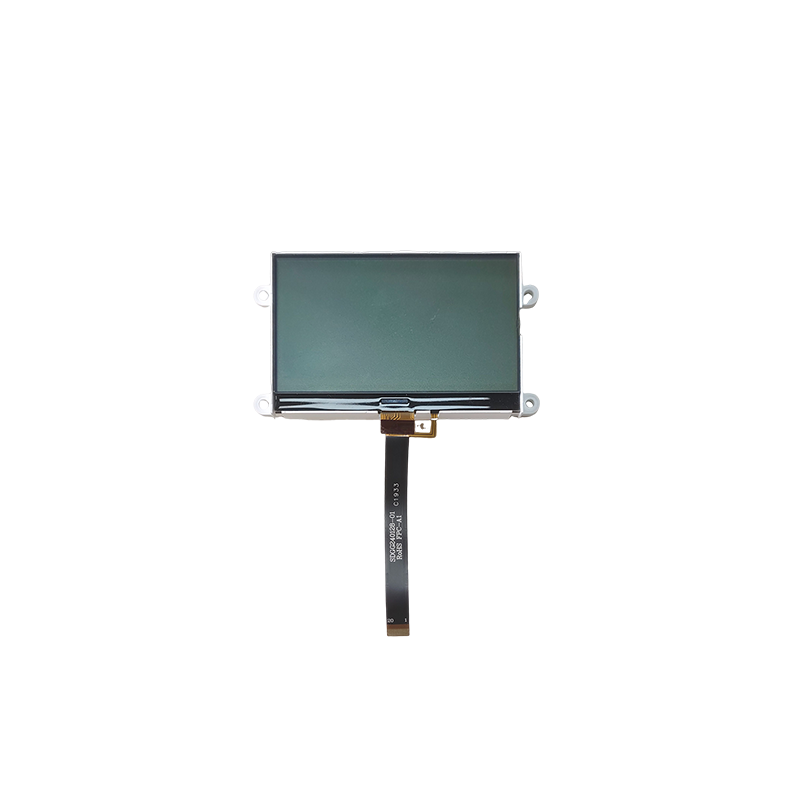

COG 240x128 LCD Display Replacement for Thermo King and Carrier
- Manufacturer: SINDA
- Product Name: 240x128 COG Character LCD Display | Thermo King and Carrier Display Replacement
- Display Format:
- Diagonal Size:
The COG 240x128 Graphic LCD Display Module is a specialized display for Thermo King and Carrier equipment. It features an FSTN, Positive Transflective LCD type, ensuring clear visuals in various lighting conditions. Operating at VDD - 3.0V and Vop - 13.6V, with a 6 o'clock viewing direction, it uses a 1/128 Duty, 1/12 Bias drive method. This module can withstand an operating temperature range of -30°C to +80°C and a storage temperature of -40°C to +85°C. With a COG + FPC connection and a UC1608X or equivalent driver IC, it offers reliable performance. The backlight consists of 6 white LEDs (VF = 16.8 - 19.2V, IF = 15mA). All sub - parts and materials comply with EU's RoHS instructions, ensuring environmental friendliness.
ATTRIBUTES
Manufacturer | SINDA |
Part Number | SDGG240128-01 |
Display Format | 240 x 128 dots |
Interface | SPI |
IC or Equivalent | UC1608X |
Connection | COG+FPC |
Outline Dimension | 111.30(W)x71.30(H)x13.10(T)mm |
Visual Area | 105.00x54.00mm |
Active Area | 100.78x48.748mm |
Dot (Pixel) Size | 0.42x0.381mm |
Dot (Pixel) Pitch | 0.24x0.27mm |
IC Package | COG |
Display Type | FSTN, Positive Transflective |
Viewing Direction | 6:00 |
Power Supply(Typ) | 3V |
Operating Temperature | -30℃~80℃ |
Storage Temperature | -40℃~85℃ |
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
|---|
